FD-VG0701
612600040113 71 mm valve guide for WD615 / Weichai
16.04 × 10.00 × 71.00
Listed OD × bore × length (mm)
FARDRIVE · Global B2B enquiries
Diesel engine valve guides, matched to your requirements
For engine rebuilders, wholesalers and parts importers worldwide. Send an OE reference, engine model or drawing. FarDrive coordinates specification checks, samples and supplier quotations from China.
Include the reference or engine, quantity and destination. Attach a drawing or labelled measurements when available.
- Drawing and sample review
- Written quotation terms
- Technical and after-sales coordination
First drawing-based sample free
For valve guides and valve seat inserts, the first sample is free when you provide a drawing. Send your drawing and requirements to Taylor Yang to confirm the specification, sample quantity and delivery arrangements. Freight, tooling, development and any other charges are confirmed separately before proceeding.
Send your drawing & requirements ↗Global B2B enquiries
Compare existing specification references
Selected from the existing owner-confirmed specification batch. This is a reference shortlist, not a stock or sales ranking. Open each detail for nominal, measured and finished-condition notes.
FD-VG0702
A 541 053 12 30 53.5 mm valve guide for OM501
14.03 × 8.00 × 53.50
Listed OD × bore × length (mm)
FD-VG0703
A 457 053 12 30 57.5 mm valve guide for OM457
14.03 × 8.00 × 57.50
Listed OD × bore × length (mm)
FD-VG0704
A 457 053 04 30 EVB constant-throttle valve guide
13.04 × 7.60 × 34.00
Listed OD × bore × length (mm)
FD-VG0705
A 422 053 04 30 67 mm valve guide for OM442
18.04 × 12.00 × 67.00
Listed OD × bore × length (mm)
FD-VG0706
4934063 4934063 / 3942645 valve guide
14.04 × 8.02 × 50.00
Listed OD × bore × length (mm)
FD-VG0707
11122-1220 60.5 mm valve guide for Hino J08
13.04 × 7.00 × 60.50
Listed OD × bore × length (mm)
From a part requirement to an agreed order
Send your part information
Provide the OE or FarDrive reference, engine version, drawing or sample information, and quantity per line.
Confirm the specification
Clarify dimensions, material, inspection scope and open questions with the supplier before sample approval.
Review the offer and sample
Check the quoted specification, packing, sample arrangements, delivery terms and destination requirements.
Agree the batch requirements
Confirm the accepted specification and commercial terms in writing. FarDrive coordinates subsequent technical and after-sales questions.
Actual valve guide samples
These actual powder metallurgy valve guide photographs show different guide designs. Please provide your full engine model, OEM reference, drawing or sample so we can confirm the specification and fitment before quotation.

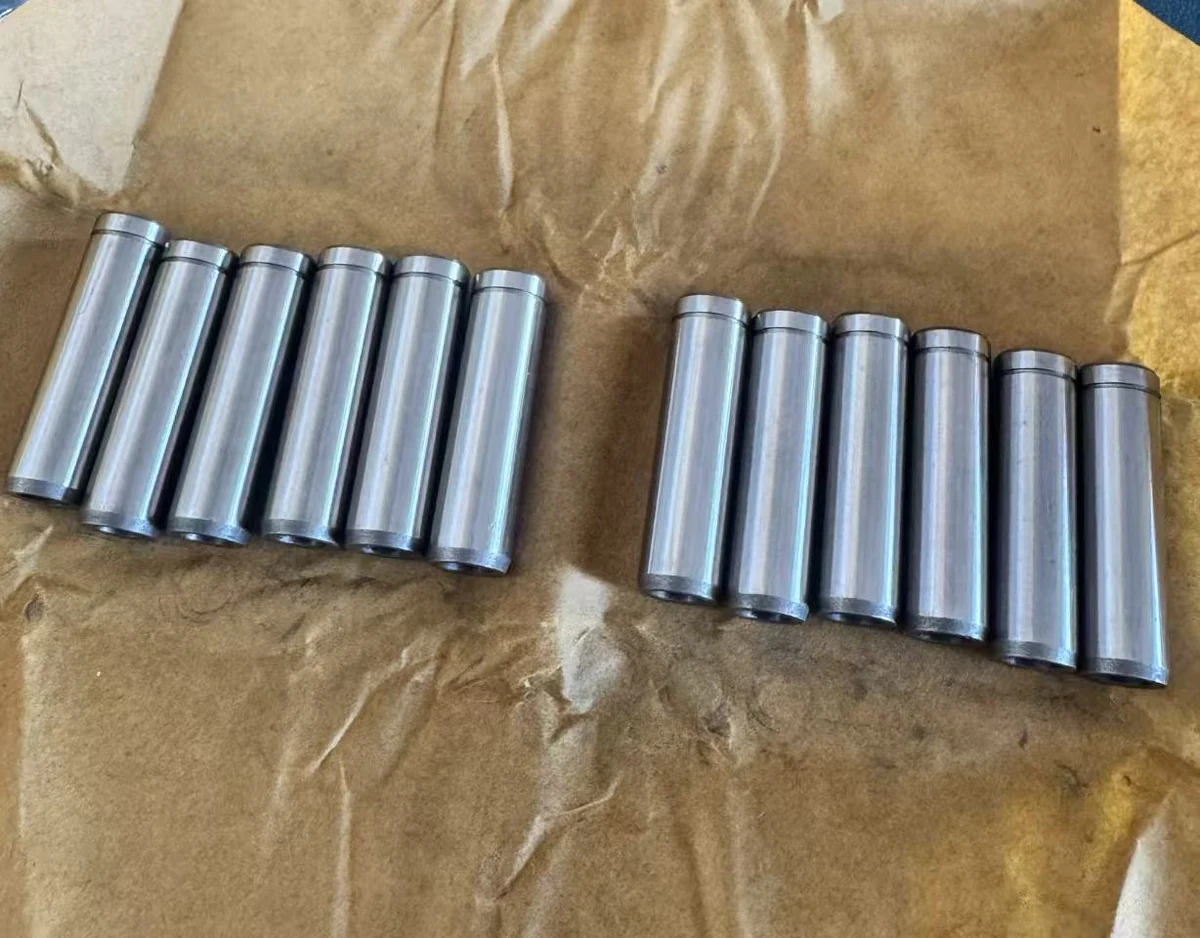

SAMPLE 01
Diesel Engine Valve Guide — 4TNE94 Sample
Material / process: Powder metallurgy (PM)
Dimensions, alloy grade and fitment confirmed for your requirement.
Request matching & quote ↗

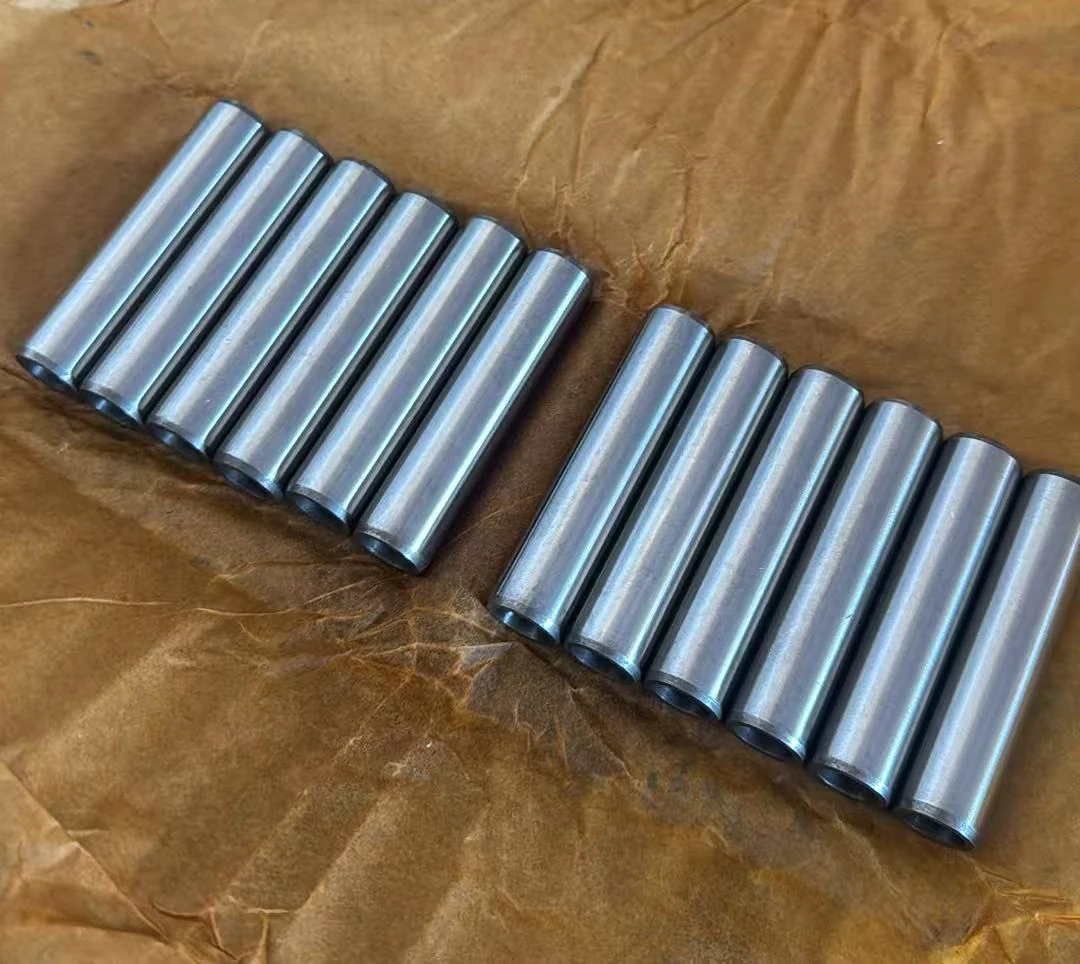

SAMPLE 02
Powder Metallurgy Diesel Engine Valve Guide Sample
Material / process: Powder metallurgy (PM)
Dimensions, alloy grade and fitment confirmed for your requirement.
Request matching & quote ↗
SAMPLE 03
Intake Valve Guide Sample for DEUTZ Diesel Engines
Material / process: Powder metallurgy (PM)
Dimensions, alloy grade and fitment confirmed for your requirement.
Request matching & quote ↗

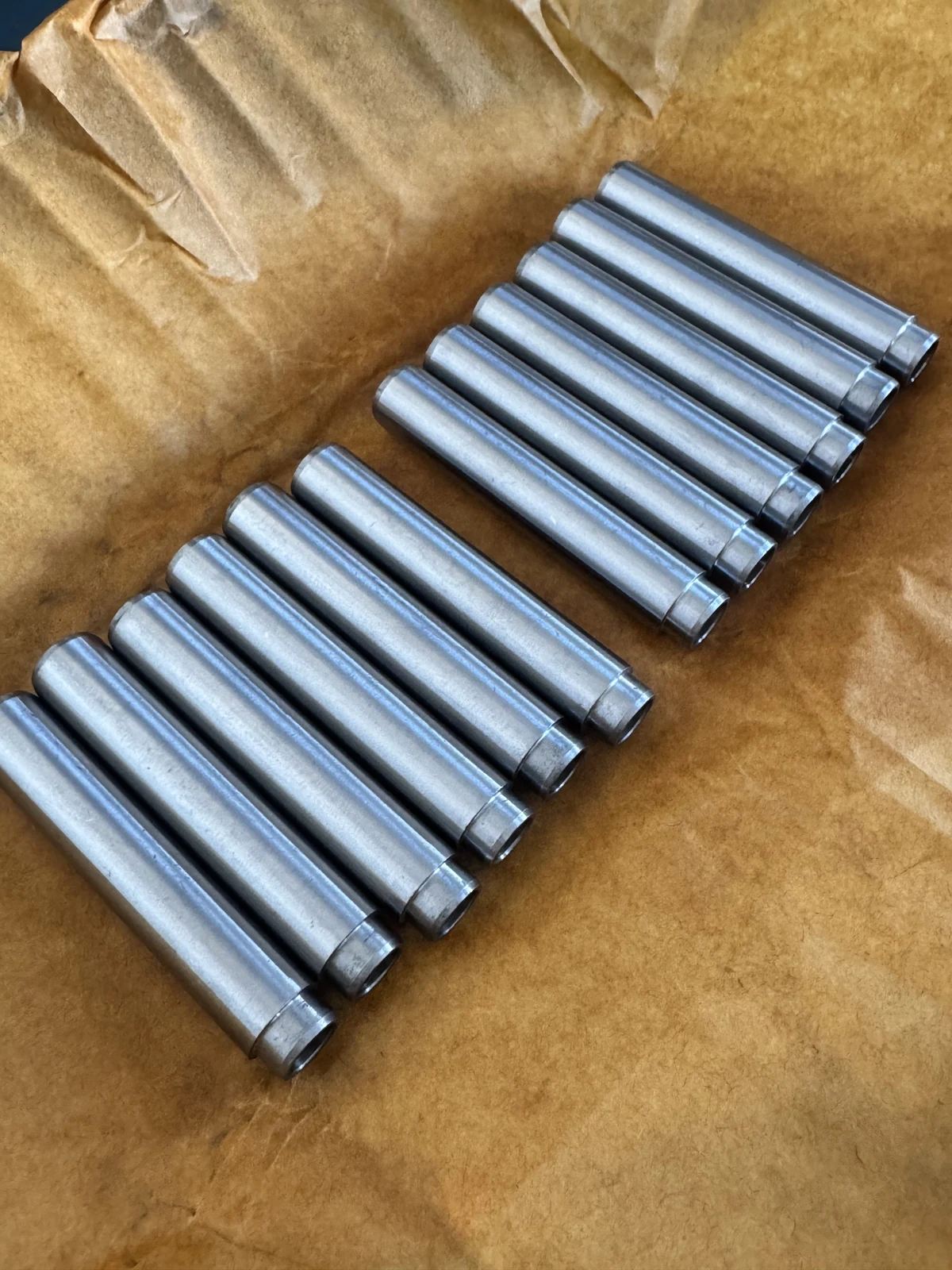

SAMPLE 04
Diesel Vehicle Valve Guide Sample
Material / process: Powder metallurgy (PM)
Dimensions, alloy grade and fitment confirmed for your requirement.
Request matching & quote ↗Product and application
Valve guides sit in the cylinder head and guide valve-stem movement. Sourcing discussions cover engine repair, rebuilding and batch component procurement.
Manufacturing coordination
I am stationed at the factory in Rushan, Shandong, China, and work on site every day. I coordinate your technical requirements, quotations, samples, production progress and agreed inspection requirements directly with the factory team.
Specifications and supply requirements
Drawings, samples or application requirements guide material, hardness, dimensions, tolerances and inspection discussions. Order quantity and lead time are confirmed for the specific project.
How to request a quotation
Provide OEM/OE reference, engine model, drawing or sample, dimensions, material requirements, quantity, destination and packaging needs. If specifications are incomplete, describe the intended application.
Valve guide lookup and drawing review
Use the catalogue to search an OE number, engine designation or FarDrive reference, then compare outer diameter, bore, length and end details. A shared length alone is insufficient. Identify new, installed or worn measurements and keep them separate from nominal drawing dimensions. Confirm material, tolerances and inspection scope for the actual project.
Search the catalogue by OE or dimensions · Read the valve guide and seat insert RFQ checklist
Specifications and order requirements
- Material
- Material agreed with the factory according to application and project requirements.
- Dimension range
- Dimensions confirmed against drawings, samples or dimensional requirements.
- Engine application
- Engine application checked against engine model, OEM reference and application requirements.
- MOQ
- Minimum order quantity discussed for the specific product, manufacturing requirements and order quantity.
- Lead time
- Lead time agreed according to sample approval, quantity and factory scheduling, and confirmed in writing before ordering.
- Packaging
- Packaging discussed according to shipping, quantity and buyer requirements.
- Sample policy
- For valve guides and valve seat inserts, the first sample is free when you provide a drawing. Send your drawing and requirements to Taylor Yang to confirm the specification, sample quantity and delivery arrangements. Freight, tooling, development and any other charges are confirmed separately before proceeding.
- Quality control process
- Inspection scope and acceptance requirements agreed in writing with the factory against drawings, approved samples and project requirements.
Procurement questions
What do I need for a valve guide quotation?
Send the engine model or OE reference, drawing or sample, outer and inner diameters, length, material and tolerance requirements, quantity and destination. Inlet and exhaust parts should be identified separately where relevant.
How are valve guide material and quality requirements confirmed?
Material, hardness, dimensions, tolerances and inspection scope are agreed against your application, drawings and approved samples. A catalogue image alone does not confirm suitability.
Can I start with a drawing or an existing sample?
Yes. FarDrive coordinates a feasibility review with the supplier. For valve guides and valve seat inserts, the first sample is free when you provide a drawing. Send your drawing and requirements to Taylor Yang to confirm the specification, sample quantity and delivery arrangements. Freight, tooling, development and any other charges are confirmed separately before proceeding. For other products, sample costs are agreed per project. Production follows written specification and sample confirmation.
Are minimum quantities, prices and lead times fixed?
They depend on the product, materials, manufacturing requirements and quantity. FarDrive confirms the quotation, agreed inspection requirements and delivery terms in writing before an order.
Toyota 2L / 3L / 5L Valve Guides & Valve Seat Inserts — enquiry checklist →
Send the part details you have
You can start with a reference, a drawing or a worn sample description. Mark unknown fields for review. State the destination country or port so shipping and document requirements can be checked for the order.
